PMMA Plano Convex Lens 10mm Diameter 2.7mm Thickness for Optical Devices
|
PMMA Plano Convex Lens 10mm Diameter 2.7mm Thickness for Optical Devices
| Τόπος καταγωγής | Κίνα |
| Μάρκα | didaINT |
| Πιστοποίηση | ISO9001 |
| Αριθμό μοντέλου | 10pt με σύνορα, χωρίς σύνορα |
Λεπτομέρειες προιόντος
Αριθμός κοιλότητας:
Μονό/multi
Λειτουργία διαδικασίας:
Custom OEM/ODM
Ελάχιστη ανοχή:
± 0,05mm
Βάση καλουπιών:
LKM, Hasco, DME
Τύπος μούχλα:
Πλαστικό καλούπι έγχυσης
Διαδικασία:
CNC | Μηχανή EDM
Επισημαίνω:
PMMA plano convex lens 10mm diameter
,optical device PMMA lens 2.7mm thickness
,plastic injection mould convex lens
Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min
100
Τιμή
0.1-1USD/PCS
Συσκευασία λεπτομέρειες
Ασφαλές πακέτο
Χρόνος παράδοσης
1-4 εβδομάδες
Όροι πληρωμής
Western Union, T/T, D/P
Δυνατότητα προσφοράς
100000pcs/μήνα
Περιγραφή προϊόντων

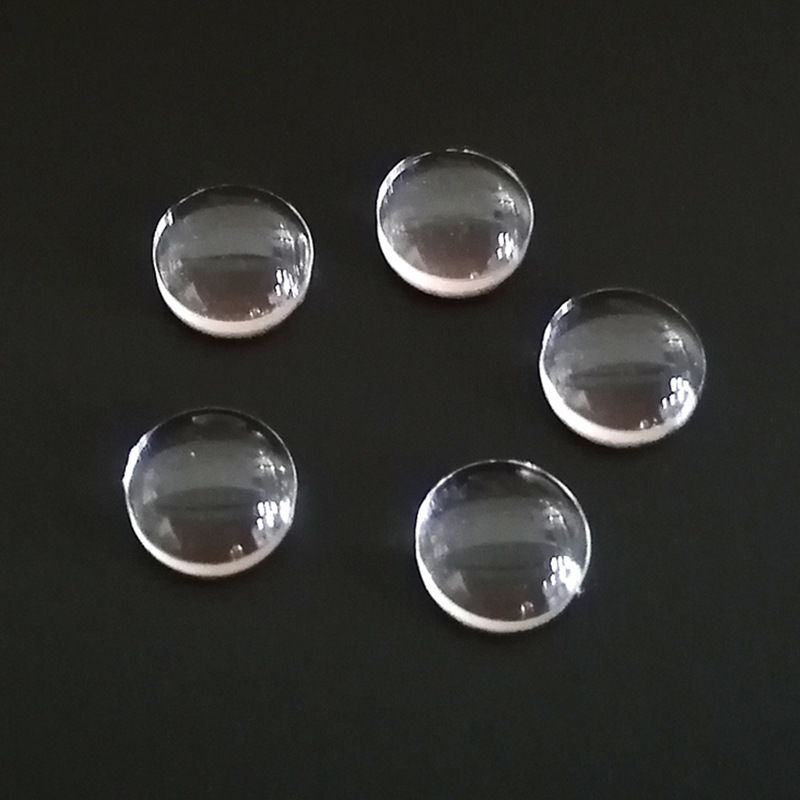

Optical Acrylic PMMA Plano Convex Lens 10mm Diameter 2.7mm Thickness for Sensors and Telescopes
Elevate your optical device performance with our precision-molded PMMA Plano-Convex Lens. Designed for clarity and durability, this 10mm diameter lens is the ideal solution for focusing light in a wide range of industrial and commercial applications. As a full-service mold design and injection molding manufacturer, we guarantee consistent quality, rapid prototyping, and mass production to meet your exact specifications.
Applications
- Sensor and detector modules (e.g., infrared sensors, motion detectors)
- Telescopes, microscopes, and magnifying instruments
- LED lighting assemblies and light guides
- Imaging systems and barcode scanners
- DIY projects and educational kits
- Various industrial machinery requiring focused light
Properties & Specifications
| Property Category | Specification Details |
|---|---|
| Product Name | Plano-Convex Optical Lens |
| Model Number | PC-LENS-10.0x2.7 |
| Material | Optical Grade PMMA (Acrylic) |
| Diameter | 10.0 mm (±0.1 mm) |
| Center Thickness | 2.7 mm (±0.1 mm) |
| Angle of incidence | 30° |
| Design | Plano-Convex, Unbounded (No Edge Round) |
| Surface Quality | <60-40 Scratch-Dig |
| Transmittance | 93% |
| Refractive Index | 1.5 |
| Coating | Uncoated (Optional AR coating available) |
Our Value & Service
End-to-End Service: From optical design, mold engineering, precision injection molding, to post-processing (trimming, polishing, coating), we handle everything in-house.
Quality Assurance: Every lens undergoes rigorous inspection to ensure precise dimensional accuracy and optical clarity.
Customization Available: Need a different size, thickness, focal length, or material? We can customize the mold and produce lenses tailored to your needs.
Competitive Pricing: Direct factory pricing for both low-volume prototyping and high-volume production runs.
Quality Assurance: Every lens undergoes rigorous inspection to ensure precise dimensional accuracy and optical clarity.
Customization Available: Need a different size, thickness, focal length, or material? We can customize the mold and produce lenses tailored to your needs.
Competitive Pricing: Direct factory pricing for both low-volume prototyping and high-volume production runs.
Product Display
