33.5mm Biconvex Optical Lens for VR Plastic Injection Molding
|
33.5mm Biconvex Optical Lens for VR Plastic Injection Molding
| Τόπος καταγωγής | Κίνα |
| Μάρκα | didaINT |
| Πιστοποίηση | ISO9001 |
| Αριθμό μοντέλου | E-33.5 Μεγέθυνση |
Λεπτομέρειες προιόντος
Λειτουργία διαδικασίας:
Custom OEM/ODM
Κοιλότητα:
Μονό καλούπι | multi καλούπι
Δρομέας:
Ζεστός τρέχων\ Ψυχρός τρέχων
Εισαγωγή υλικού:
P20
Φινίρισμα επιφάνειας:
Λάμψη, υφή, ζωγραφική, κλπ.
Περίοδος κατασκευής:
20-30 ημέρες
Επισημαίνω:
33.5mm biconvex VR lens
,plastic injection molded optical lens
,VR biconvex lens with warranty
Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min
100
Τιμή
0.1-1usd/pcs
Συσκευασία λεπτομέρειες
Ασφαλές πακέτο
Χρόνος παράδοσης
1-4 εβδομάδες
Όροι πληρωμής
D/P, T/T, Western Union
Δυνατότητα προσφοράς
100000pcs/μήνα
Περιγραφή προϊόντων

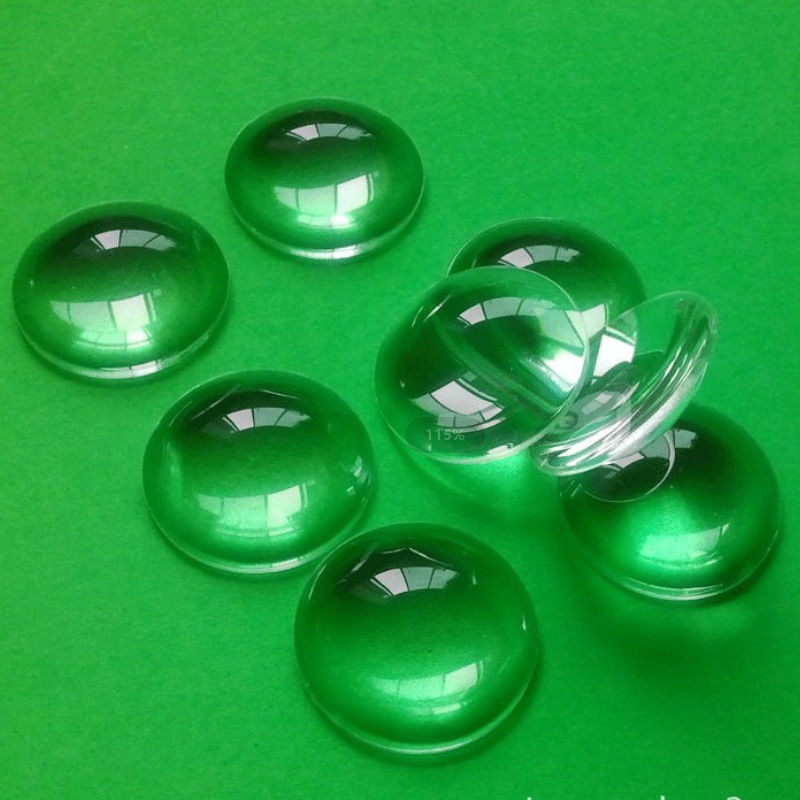

Biconvex Optical Lens for VR Plastic Injection Molded Aspheric Lens
Elevate your VR hardware with our precision-engineered 8.5mm/33.5mm biconvex optical lens. Specifically designed for immersive virtual reality experiences, this lens is manufactured using advanced plastic injection molding techniques to ensure exceptional clarity, consistency, and cost-effectiveness. Our full-service approach from optical design to post-processing and coating guarantees a seamless supply of high-quality optical components for your VR production.
Applications
- Primary design for VR Headset and VR One-Host Machine
- Perfectly suited for AR Glasses and Smart Glasses
- Ideal for Projectors, Cameras, and Magnifiers
- Compatible with various Imaging Systems and Electronic Visual Devices
Properties & Specifications
| Attribute | Specification |
|---|---|
| Product Type | Optical Lens |
| Model Number | E-33.5 magnifying glass |
| Design | Biconvex Aspheric |
| Refractive index | 1.5 |
| Diameter | 33.5mm |
| Center Thickness | Customized upon request |
| Material | Optical Grade PMMA (Acrylic) |
| Angle of incidence | 30° |
| Transmittance | 93% |
| Surface Quality | 60-40 Scratch-Dig |
| Coating | Custom AR Coating Available |
| Process | Precision Injection Molding |
Our Value & Service
End-to-End Service: From optical design, mold engineering, precision injection molding, to post-processing (trimming, polishing, coating), we handle everything in-house.
Quality Assurance: Every lens undergoes rigorous inspection to ensure precise dimensional accuracy and optical clarity.
Customization Available: Need a different size, thickness, focal length, or material? We can customize the mold and produce lenses tailored to your needs.
Competitive Pricing: Direct factory pricing for both low-volume prototyping and high-volume production runs.
